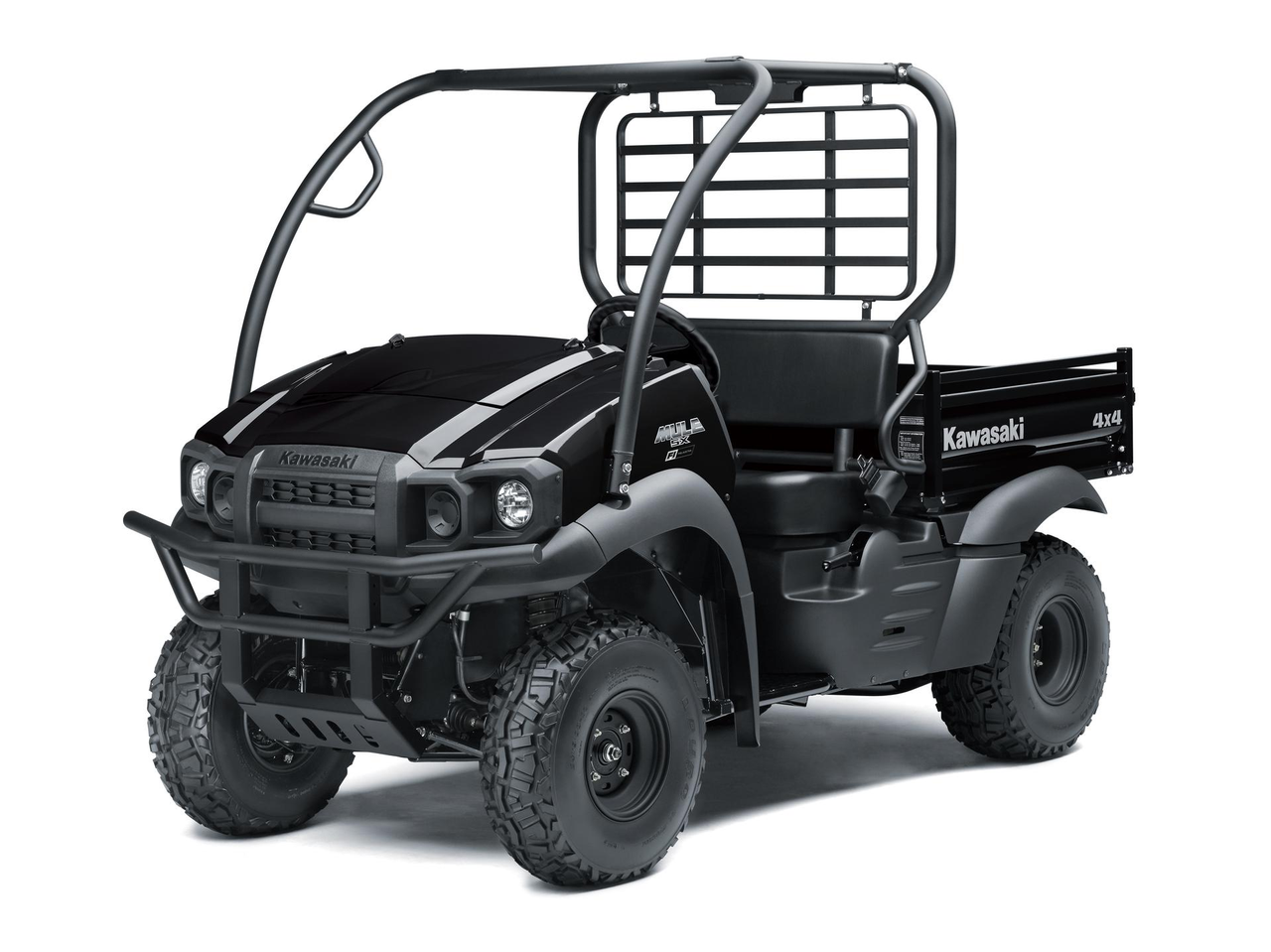

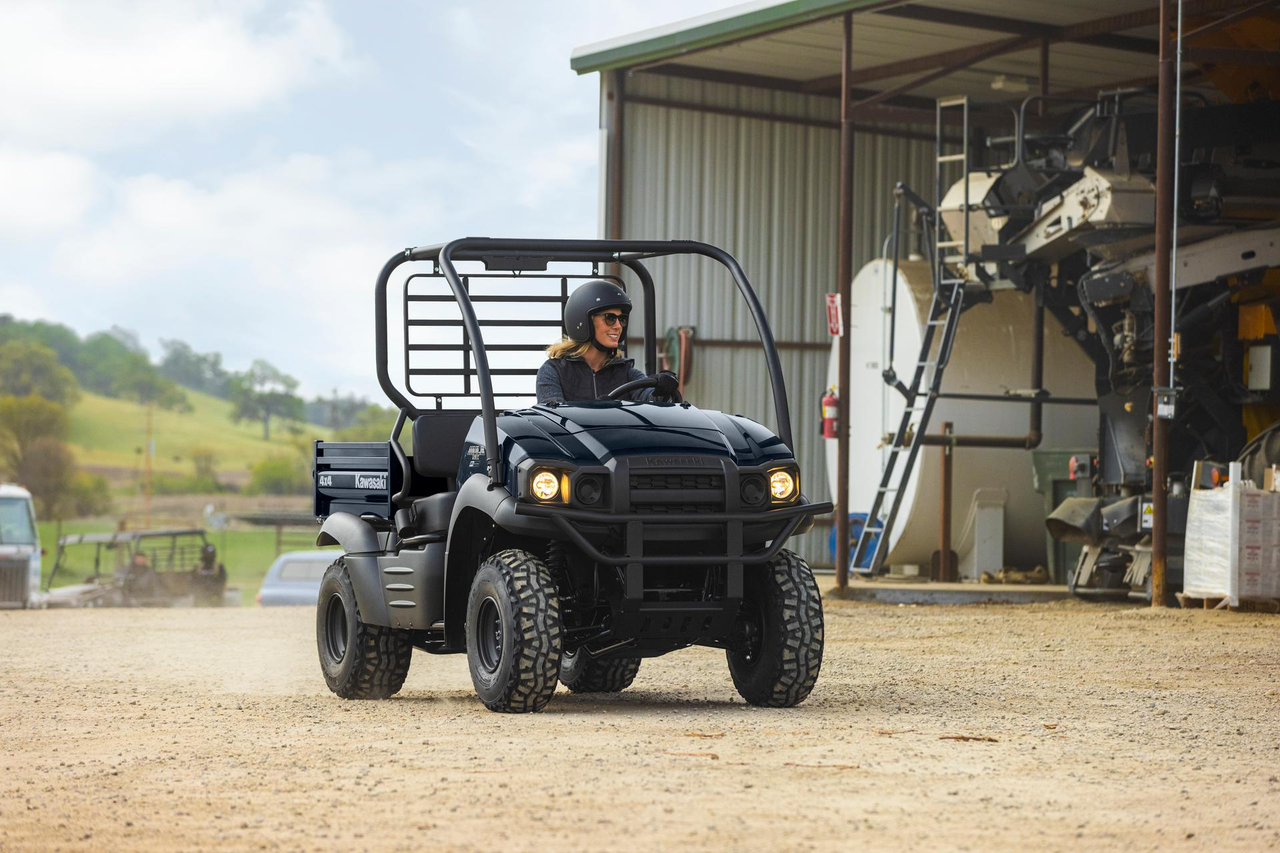

Pickup truck style front hood, front grill and headlamp design modelled after the PRO Series MULE flagship models give the MULE SX models a tougher, rugged image like their bigger brethren.

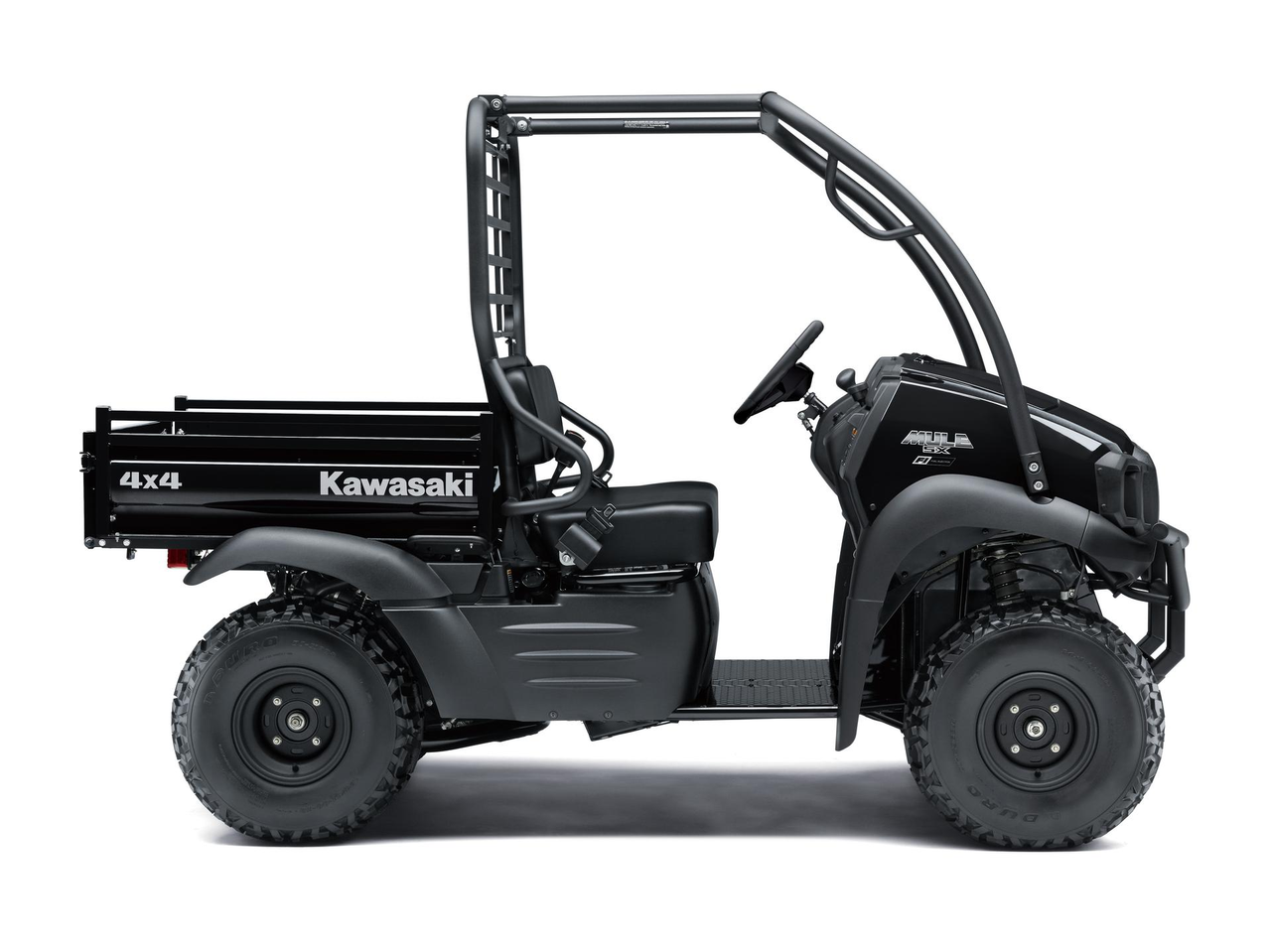

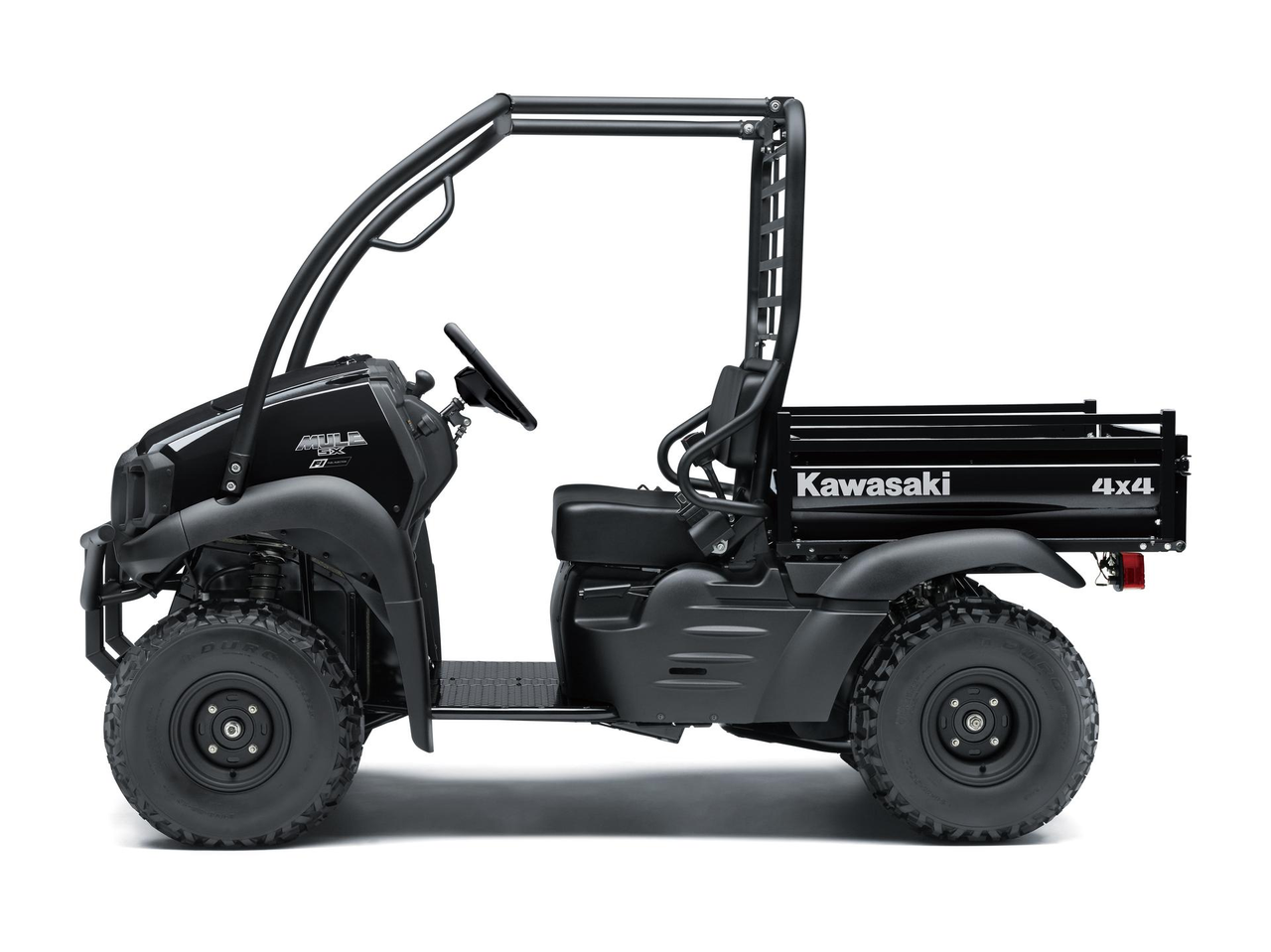

Overall width is 1,335 mm; length is 2,710 mm. Tread measures 1,055 mm (front) and 1,000 mm (rear). Wheelbase is 1,780 mm.

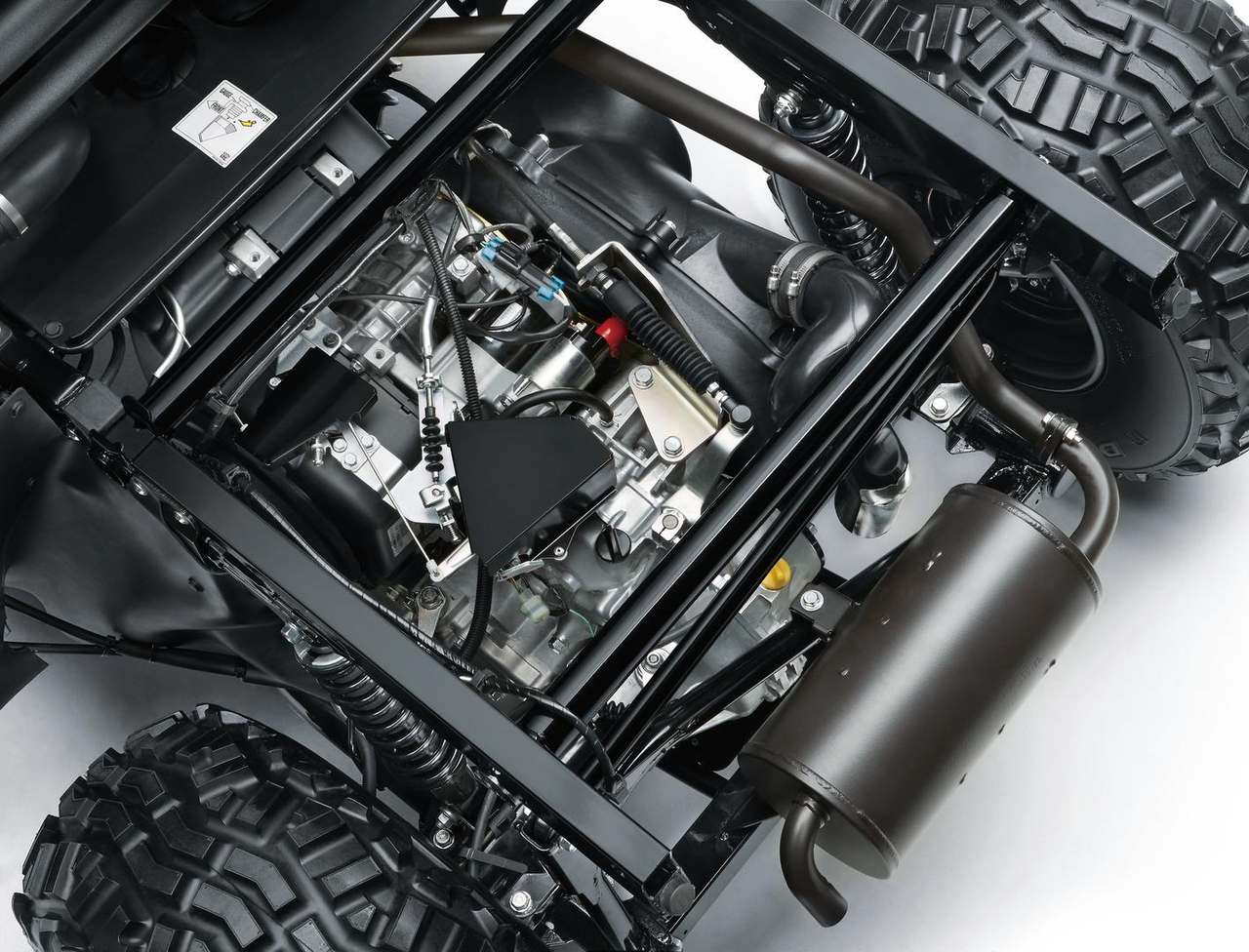

The MULE SX is powered by a 401 cm3, 4-stroke, OHV, air-cooled engine. Compact, lightweight and durable, the engine is extremely reliable.

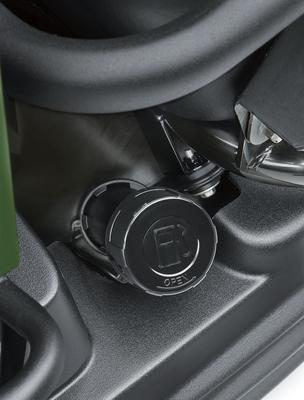

16-litre fuel tank gives the fuel-efficient MULEs ample operating range. Redesigned fuel tank filler hole makes refuelling much easier.

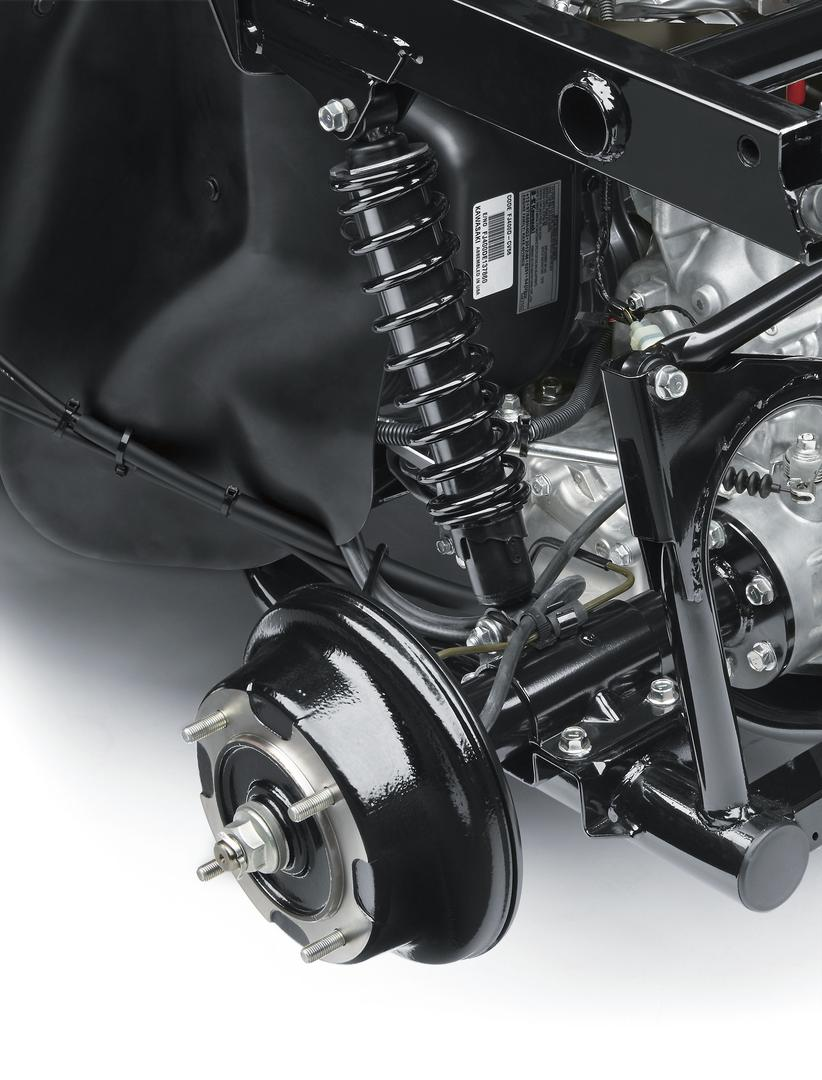

Idealised front and rear suspension settings offer the following benefits: - increased stability - improved suspension action, contributing to off-road bump absorption and ground following, as well as increased ride comfort - improved handling response, facilitating control

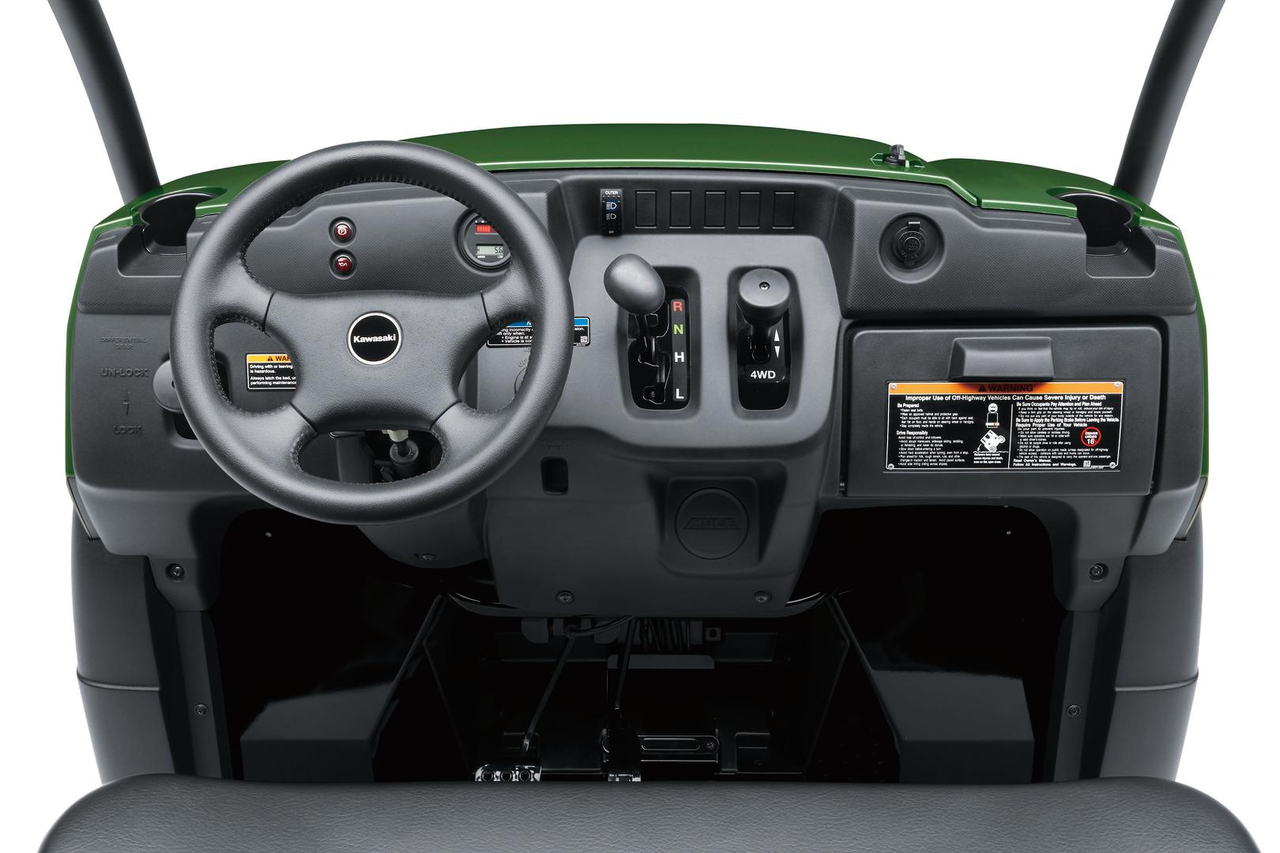

Automotive-style dashboard designed based on that of the PRO Series models puts all controls within easy reach of the driver.

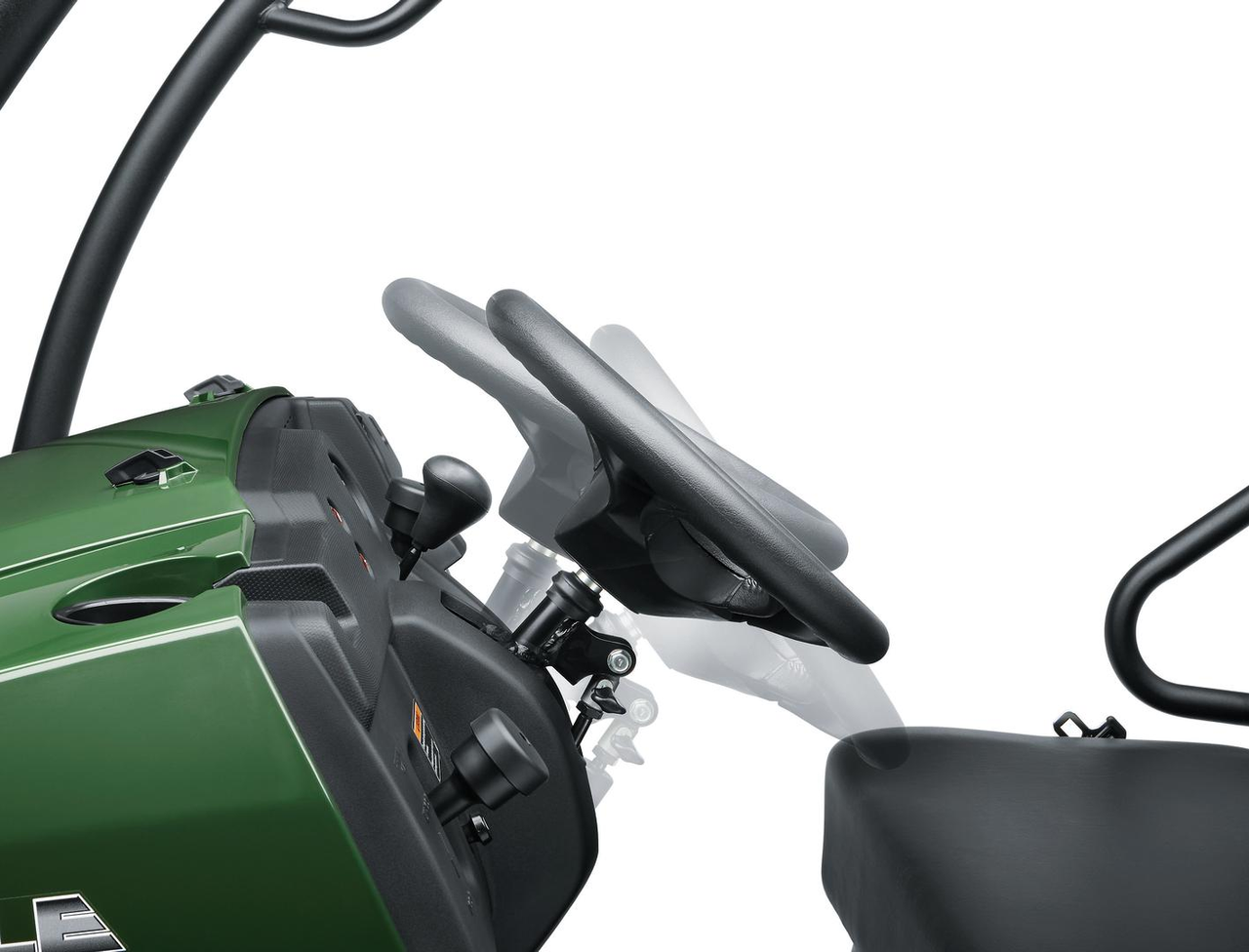

Steering wheel has a stepless adjustability range of approximately 29o, allowing drivers to set its position to suit their preference, as well as lift it out of the way to facilitate getting in and out of the vehicle

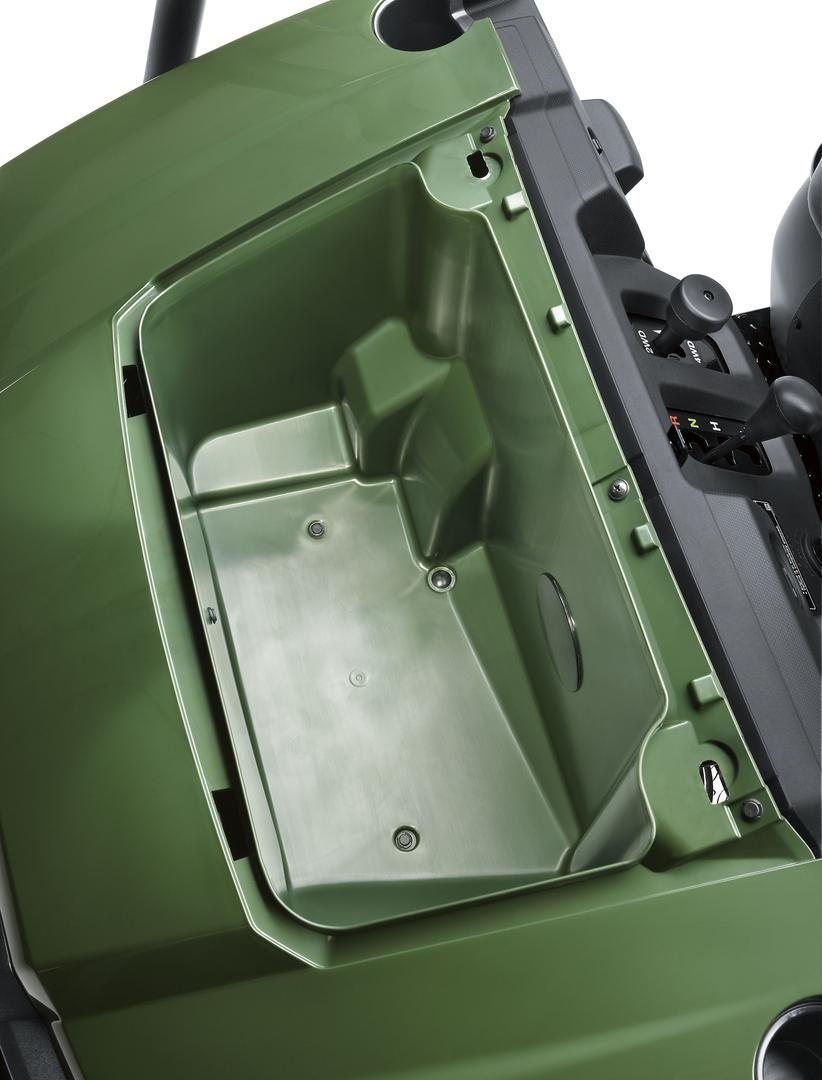

Removable front hood allows quick access to a spacious 60-litre sealed storage area. The hood releases are on the cab side, allowing access from inside the cab.
Pulling the parking brake lever (conveniently located to the left of the driver’s seat) operates a mechanical internal expansion type brakefor the rear wheels.

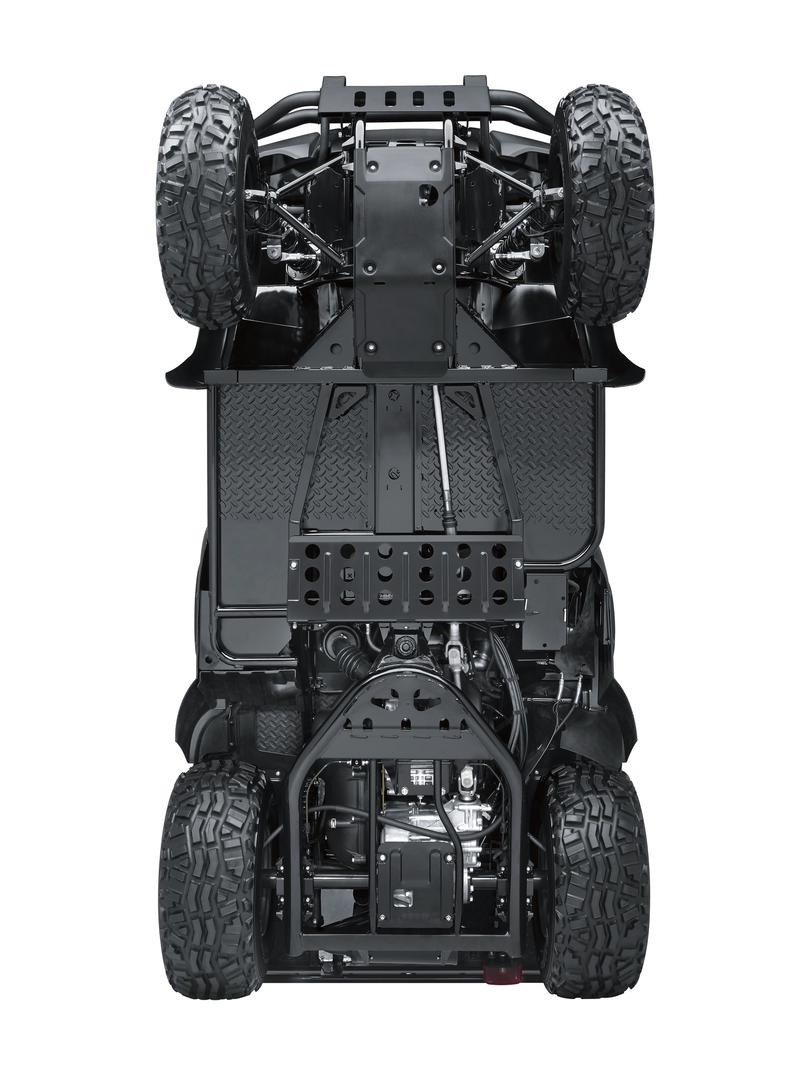

Highly durable ladder-type tubular steel frame designed for an ideal blend of rigidity and ride comfort.
Belt-driven automatic transmission with a Hi-Lo dual-range transfer case gives the 4WD models excellent off-road riding capability. Two forward speeds to choose from lend flexibility when hill-climbing with a heavy load.

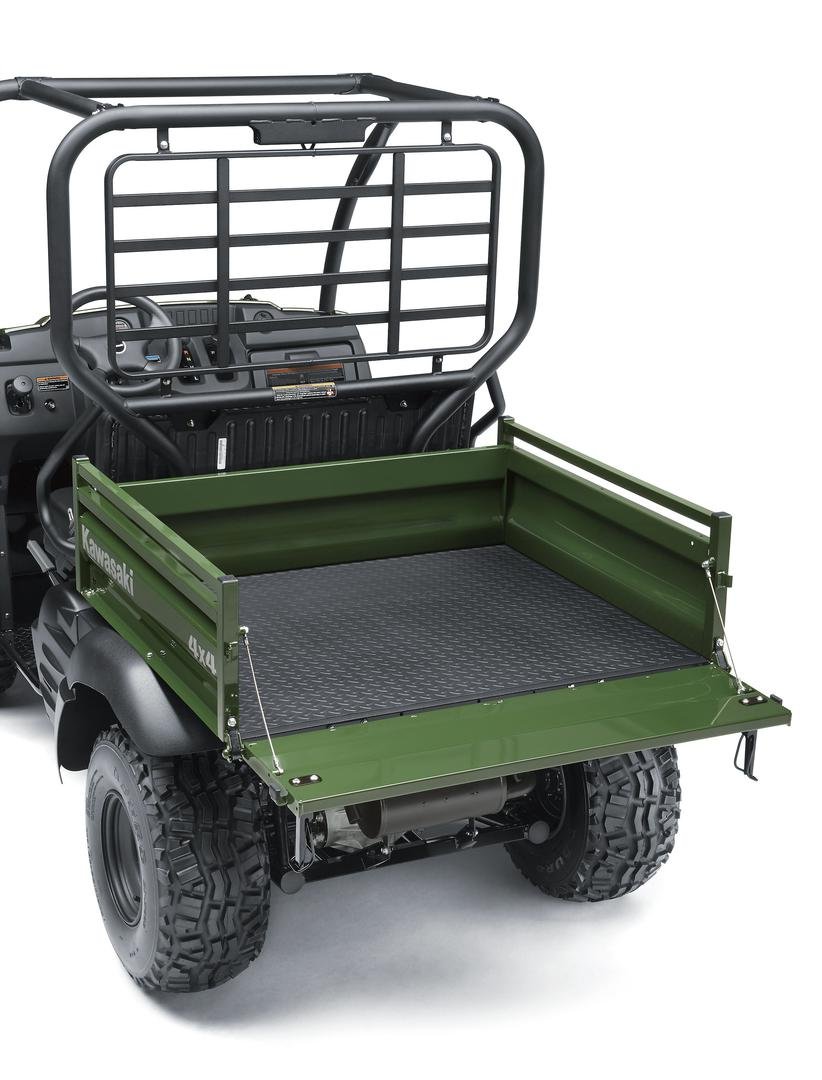

Cargo bed dimensions are 1,040 x 905 x 245 mm. Its square, flat design makes it easy to load from three sides. Cargo bed load capacity is 181 kg
ERGO-FIT este un sistem de interfață care permite unei game largi de piloți să se simtă comod pe motocicletă.
| Tip motor | Motor în 4 timpi cu un cilindru răcit pe aer |
|---|---|
| Raport de compresie | 8.6:1 |
| Sistem de supape | OHV, 2 supape |
| Diametru cilindru x timpi | 82.0 x 76.0 mm |
| Capacitate cilindrică | 401 cm³ |
| Sistemul de alimentare cu combustibil | Injecție de combustibil |
| Lubrifiere | Ungere forțată, carter-umed |
| Sistemul de pornire | Electric |
| Aprindere | Baterie și bobină (aprindere electronică) |
| Putere maximă | 9.9 kW {13.5 PS} / 4,000 rpm |
|---|---|
| Cuplu maxim | 29.0 N•m {3.0 kgf•m} / 2,400 rpm |
| Transmisie | Variator de turație 2 viteză și marșarier automat |
| Raport de reducere primară | 3.653 ~ 0.794 |
| Transmisie finală | Tracțiune 2 roți/4 roți |
| Raport de reducere finală | 4.000 (64/16) |
| Tipul de cadru | Tip scară, oțel tubular |
|---|---|
| Trail | 45 mm |
| Cursa suspensiei roată față | 78 mm |
| Cursa suspensiei roată spate | 79 mm |
| Pneu, față | 24 x 9-10 |
| Pneu, spate | 24 x 11-10 |
| L x l x H | 2,710 x 1,335 x 1,800 mm |
| Unghiul de virare stânga-dreapta | 43° / 38° |
| Ampatament | 1,780 mm |
| Garda la sol | 170 mm |
| Capacitatea rezervor combustibil | 16.0 litri |
| Înălțime șa | 780 mm |
| Masă totală* | 468 kg |
| | *Masa totală include toate materialele și fluidele necesare pentru a funcționa corect, rezervorul plin de combustibil (mai mult de 90 la sută din capacitate) și trusa de scule (dacă este furnizată). |
| Greutatea la gol aproximativă** | 450 kg |
| | **Greutatea la gol estimată nu include toate materialele și fluidele necesare pentru a funcționa corect, rezervorul plin de combustibil (capacitate mai mare de 90 la sută) și trusa de scule (dacă este furnizată). |
| Frână de parcare | Tip mecanic cu expansiune internă pe roțile din spate |
|---|---|
| Tipul frânei față | 2 Tamburi hidraulici |
| Tipul frânei spate | 2 tamburi hidraulici |
| Tipul suspensiei față | Montanți MacPherson |
| Tipul de suspensie spate | Braț oscilant unitar |

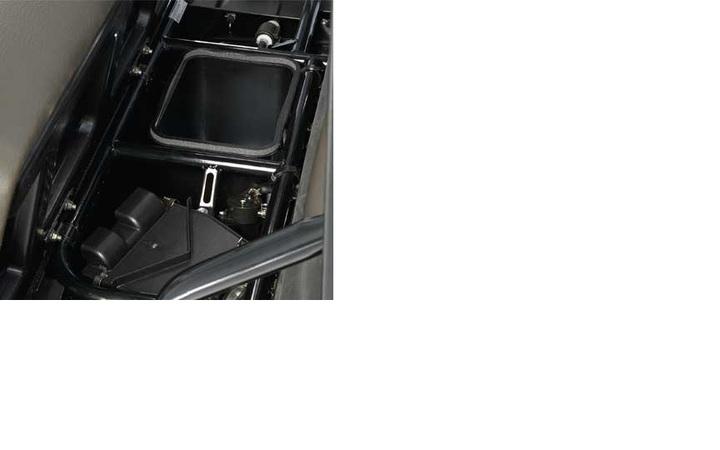

Large storage bin fits under passenger side of seat. Lift seat bottom for access. Approximately 13,5 L (3.6 gallon) volume.
•Not compatible with hard cabin
Part Number: 022CAT0088 – Half Cabin Kit for MULE SX.
Includes: Glass windscreen, Wiper and washer kit, Steel Roof Panel, Steel with Polycarbonate (PC) Rear Panel.
Modular Parts:
Image shown is 022CAT0087A, MULE SX Hard Cabin with Sliding Windows.
Citește mai mult
Part Number: 022CAT0087B – Hard Cabin Kit for MULE SX.
Includes: Glass Windscreen, Steel Roof, Steel with Polycarbonate (PC) Rear Panel, PC Doors with Fixed Glass Windows, and Wiper and Washer Kit.
Structure made of high-grade steel with quality black finish. The flip-up tinted single-layer safety glass windscreen features rubber seals and locks. Doors are equipped with hydraulic stoppers and automotive-style locks.
Modular Parts:
Image shown is 022CAT0087A – MULE SX Hard Cabin with Sliding Windows. 022CAT0087B has Fixed Windows.
Citește mai mult
The perfect start to a protective cab system.
Part Number: 022CAT0106 – Roof & Windscreen Kit for MULE SX.
Includes: Steel Roof Panel, Windscreen, and Wiper + Washer Kit.
Modular Parts:
Image shown is 022CAT0087A, MULE SX Hard Cabin with Sliding Windows.
Citește mai mult
Vertical shatter-resistant safety glass mirror sits in high-impact plastic housing.
Convex mirror surface increases the driver’s field of rear view. Adaptive 360° bracket rotation provides optimal viewing position.
Mirrors attach directly to vehicle ROPS.
Steel with Polycarbonate Rear Panel that protects against dust, dirt, and weather. An important part of a complete cab system.
Part Number: 022CAT0092 – Rear Panel for MULE SX.
Available Modular Parts:
Image shown is 022CAT0087A, MULE SX Hard Cabin with Sliding Windows.
Citește mai mult
Made from tough 7.9,mm (5/16”) extra thick rubber, the Cargo Bed Mat protects cargo and bed surface
Citește mai mult

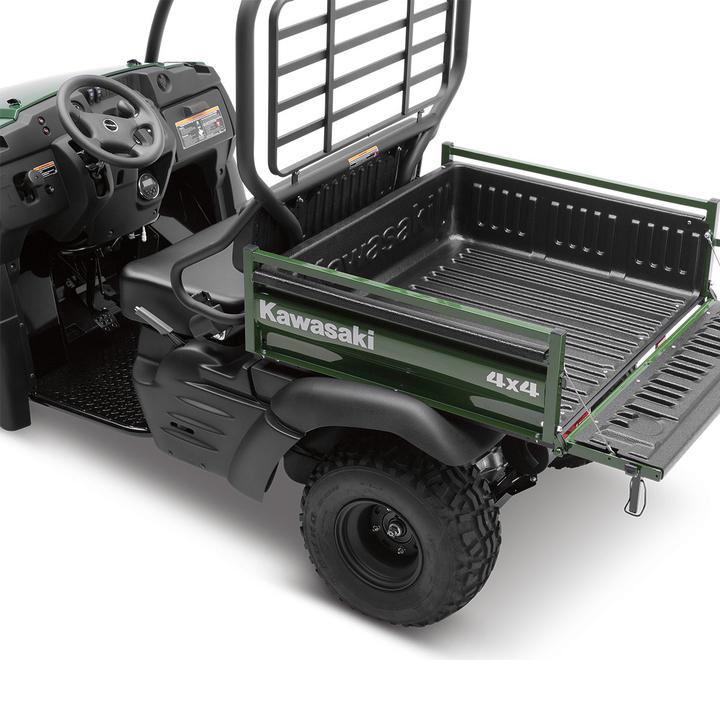

Slip-resistant Cargo Bed Liner for MULE SX/600/610.
Cargo Bed Liner includes divider notches to use 152mm (6") L x 51mm (2") W pieces to compartmentalize the bed.
Durable and clear windscreen made of high-quality plastic.
Part Number: 022CAT0090 – Windscreen for MULE SX.
*Does not include Wiper and Washer.
Available Modular Parts:
Image shown is 022CAT0087A, MULE SX Hard Cabin with Sliding Windows.
Citește mai mult
Heavy-Duty Reinforced Rear Coil Spring.
Citește mai mult

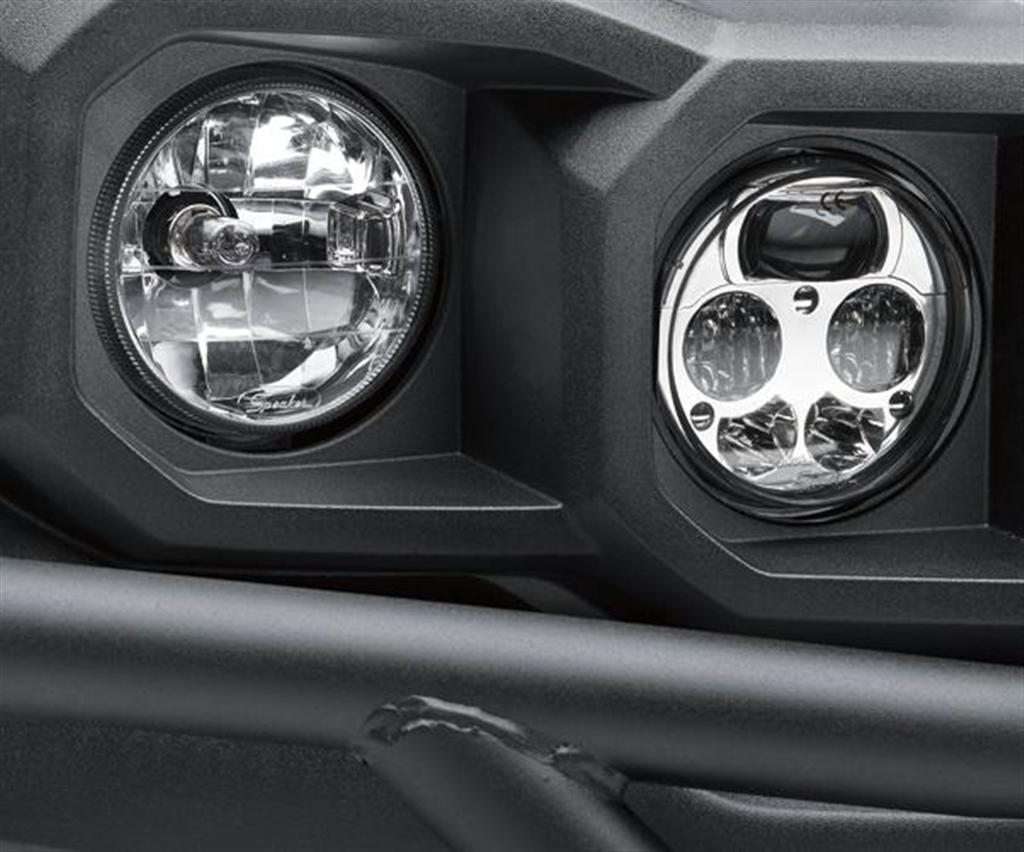

High-performance LED headlights for improved illumination and better visibility.
Washer System that works with the MULE SX Windscreen. Includes pump, hose, and nozzle.
Part Number: 022CAT0095 – Washer System for MULE SX.
Available Modular Parts:
Image shown is 022CAT0087A, MULE SX Hard Cabin with Sliding Windows.
Citește mai mult
Robust Steel Roof Panel that protects against rain, sun, and snow. Easy to install and adapted for the MULE SX series.
Part Number: 022CAT0091 – Steel Roof Panel for MULE SX.
Available Modular Parts:
Image shown is 022CAT0087A, MULE SX Hard Cabin with Sliding Windows.
Citește mai mult
The perfect start to a protective cab system.
Part Number: 022CAT0089 – Windscreen Kit for MULE SX.
Includes: Windscreen, Wiper, and Washer Kit.
Modular Parts:
Image shown is 022CAT0087A, MULE SX Hard Cabin with Sliding Windows.
Citește mai mult
Provides better visibility in rainy and dirty conditions. Designed specifically for use with the MULE SX Windscreen.
Available Modular Parts:
**Image shown is 022CAT0087A, MULE SX Hard Cabin with Sliding Windows.
Citește mai mult

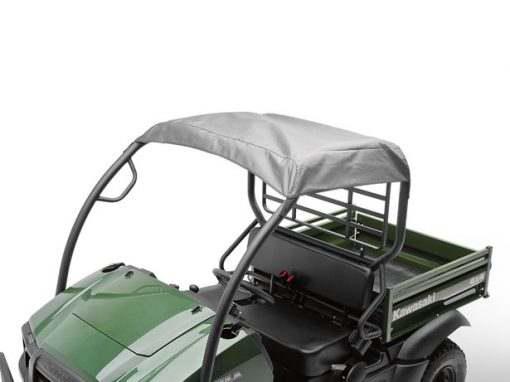

Durable, weatherproof 510g (18 oz) fiber-reinforced PVC laminate material. Installs easily with durable straps. Includes fiberglass support rod to shape the peak.
3D curved safety glass provides increased field of view.
Can also be used in combination with the Hard Cabin for MULE PRO-MX and MULE SX.
Not compatible with the MULE PRO-DX & DXT Hard Cabin with Roof.
The Headrest offers additional occupant comfort
